Barrhaven Light Rail Transit (Baseline Station to Barrhaven Town Centre) and Rail Grade-Separations Planning and Environmental Assessment Study

Third Public Consultation – Online February 8 to 22, 2023

Study Process:

The EA study is being conducted in accordance with the Transit Project Assessment Process (TPAP) as prescribed under Ontario Regulation 231/08 of the Environmental Assessment Act. O. Reg. 231/08: TRANSIT PROJECTS AND METROLINX UNDERTAKINGS (ontario.ca)

The EA process involves developing and evaluating alternatives which lead to a Recommended Plan considering all aspects of the surrounding environmental (social, natural, physical and economic) conditions and documented in an Environmental Project Report (EPR).

February 8, 2023: 6 to 8:30 pm

This third public consultation will include the following:

A live presentation via the City’s project website
Presentation of the changes to the functional design of the recommended plan only between Knoxdale Station and Nepean Sportsplex Station
Modifications to Woodroffe Avenue to accommodate the median LRT alignment
Preliminary impact assessment related to the shift in LRT alignment to the median
Implementation and construction staging plans
Next steps.

Your feedback is an important component of the study. Primary means for providing feedback include submission of the questionnaire form or sending email to the City Project Manager at the coordinates listed below.

Please register for the Open House event and/or view materials. The presentation and supporting display boards and plans will be available on the City’s project website prior to the event along with an online questionnaire that can be completed anytime between February 8 to 22, 2023.

Register in advance for this meeting:

After registering, you will receive a confirmation email containing information about joining the meeting.

Comments received will be compiled and included in the EPR as required under the Environmental Assessment Act. With the exception of personal information, it will become part of the public record.

Accessibility is an important consideration for the City of Ottawa. If you require alternative means to provide feedback, please contact the City Project Manager as noted below. Members of the public are encouraged to submit comments by February 22, 2023.

For further information or to provide comments, please contact:

Anna Valliant, Senior Project Manager,
Transportation Environmental Assessments, Transportation Planning
Planning, Real Estate and Economic Development
City of Ottawa
Email: Anna.Valliant@ottawa.ca
613-282-3742

Notice of project status/additional work

Overview

To mitigate impact to existing housing units along the west side of Woodroffe Avenue, Council has approved a revised centreline raised LRT alignment between north of Knoxdale Road and the Nepean Sportsplex. Additional work is required to refine the approved Functional Design Plan including mitigation of any potential impacts (including noise and sightlines), consultation with the public on this design change and reporting back to Transportation Committee on the results of this consultation.

Changes to the Recommended Plan are isolated to the portion of Woodroffe Avenue between north of Knoxdale and the Nepean Sportsplex Station. The Functional Design for the remainder of the corridor remains unchanged.

Background

On November 25, 2020, Ottawa City Council approved the Environmental Assessment (EA) study’s Recommended Plan for the Barrhaven LRT extension from Baseline Station to Barrhaven Town Centre that incorporated an elevated LRT guideway located immediately west of the Woodroffe Avenue right-of-way between Algonquin College and the Nepean Sportsplex. One of the impacts of this plan was the removal of 100 low-cost residential housing units situated within a required 20-metre-wide strip of land between north of Knoxdale and the Nepean Sportsplex Station.

Along with their approval of the plan, Council approved a series of motions aimed at mitigating the impact of the loss of these residential units which included establishing a Working Group to examine options on how to assist residents who are facing future relocation because of the LRT alignment. One of the proposed mitigation measures explored was to change the LRT alignment to eliminate the loss of the housing units.

Accordingly, the EA Team developed a proposed refinement to the approved Functional Design plan placing the elevated LRT alignment within the median of Woodroffe Avenue between Knoxdale and West Hunt Club Roads. The revised plan was presented to Transportation Committee and approved by Council on June 8, 2022. As part of their approval, City Council directed staff to further review and refine the median LRT functional design in this area to mitigate any potential impacts (including noise and sightlines), consult the public on this design change and report back to Transportation Committee on the results of this consultation.

Please note that changes to the Recommended Plan are isolated to the portion of Woodroffe Avenue between north of Knoxdale and the Nepean Sportsplex Station. The Functional Design for the remainder of the corridor remains unchanged.

Next steps and timelines

The next steps and timelines for the study process are detailed below:

Issue Notice of Termination of current Transit Project Assessment Process (TPAP) - August 2022
Refine, review and assess impacts of median LRT alternative
- Transportation (road safety audit, traffic operations)
- Social Environment (noise, vibration, property, landscape)
- Municipal services and utilities
- Natural/physical environment

Perform Constructability review (including cost estimate)
Carry out focused stakeholder Consultation - September 2022
Conduct the last set of Consultation Group meetings and Public Open House – November 2022
Present recommended plan to Transportation Committee and Council – February 2023
Initiate new TPAP – April 2023
Achieve Minister’s approval – October 2023

If you have any questions or need further information about this transit project, please contact the City’s Project Manager below.

Anna Valliant, P.Eng., inq (Qué)
Senior Project Manager
Transportation Environmental Assessments Branch
City of Ottawa
110 Laurier Avenue West, 4th Floor
Ottawa ON K1P 1J1
Email: Anna.Valliant@ottawa.ca
613-580-2424 ext 16904
Cell: 613-282-3742

Notice of Issue

February 18, 2022

Kathleen O’Neill
Director, Environmental Approvals Branch
Ministry of the Environment, Conservation and Parks
135 St. Clair Avenue West
1st Floor
Toronto, Ontario M4V 1L5
Simon.Zhao@ontario.ca and Kathleen.ONeill@ontario.ca

Peter Taylor
Regional Director, Eastern Region
Ministry of the Environment, Conservation and Parks
PO Box 22032, 1259 Gardiners Road
Kingston, Ontario K7M 8S5
eanotification.eregion@ontario.ca

Re: Notice of Issue for Barrhaven Light Rail Transit (Baseline Station to Barrhaven Town Centre) and Rail Grade-Separations Planning and Environmental Assessment Study (Environmental Project Report)

The Barrhaven Light Rail Transit (Baseline Station to Barrhaven Town Centre) and Rail Grade-Separations Planning and Environmental Assessment Study (Project) is currently following the transit project assessment process as prescribed in the Transit Projects and Metrolinx Undertakings Regulation (Ontario Regulation 231/08) (Transit Regulation). The City of Ottawa is of the opinion that more time is needed to confirm that there are no negative impacts on a constitutionally protected Indigenous or treaty right and as such is providing this Notice of Issue.

Under subsection 10(1) of the Transit Regulation, if a Notice of Issue is given, the 120-day consultation period stops running and will resume when the above-noted issue has been addressed and a notice of resumption has been provided to you.

A copy of this Notice of Issue has also been posted on the project website: Ottawa.ca/barrhavenlrt.

If you have any questions or need further information about this transit project, please contact the City’s Project Manager below.

Sincerely,

Frank McKinney
Program Manager
Transportation Planning – Environmental Assessments
Planning, Real Estate and Economic Development Department
City of Ottawa
110 Laurier Ave. West, 4th Floor
Ottawa, ON K1P 1J1
613-580-2424, ext. 28540
Frank.McKinney@ottawa.ca

Notice of Commencement of Transit Project Assessment Process

The Project

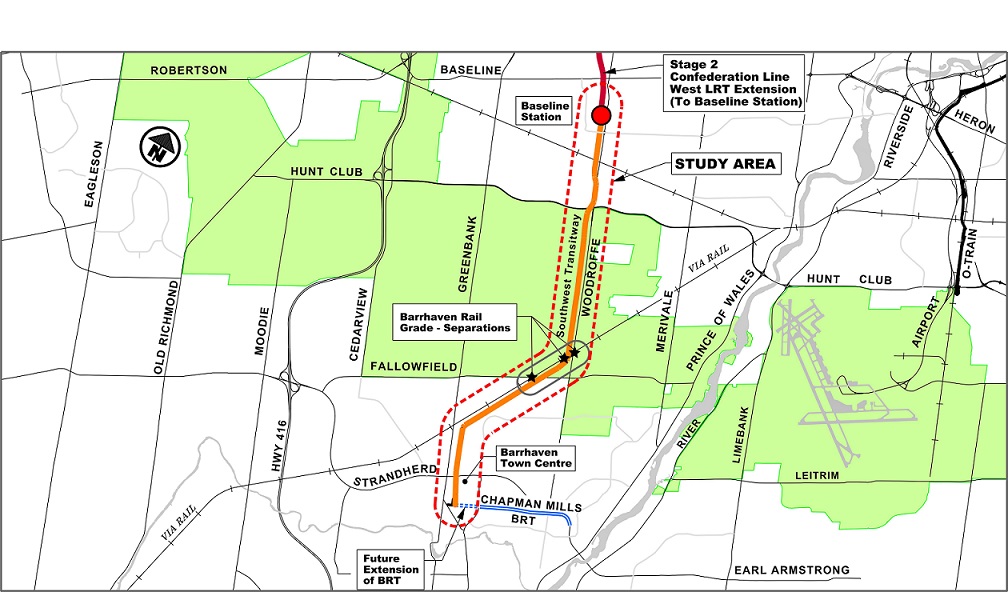

The City of Ottawa is planning to extend Light Rail Transit (LRT) from Baseline Station to the Barrhaven Town Centre. This will include rail grade-separations of Woodroffe Avenue, the Southwest Transitway and Fallowfield Road where these corridors cross the VIA Rail Smiths Falls Subdivision line. Pre-planning and on-going consultation activities for this project commenced in 2018 and resulted in a Recommended Plan that was approved by Ottawa City Council on November 25, 2020.

The Recommended Plan incorporates:

10 kilometres of twin-track, fully segregated electric LRT. This will include 2.4 kilometres of elevated guideway west of Woodroffe Avenue between Baseline Station and the Nepean Sportsplex, and conversion of the existing 7.6 kilometres Southwest Transitway, between Nepean Sportsplex and Barrhaven Town Centre, from bus to LRT
Conversion of the four (4) existing BRT stations (Fallowfield, Longfields, Strandherd and Barrhaven Centre) to LRT stations and the creation of three (3) new stations (Tallwood, Knoxdale, and Nepean Sportsplex)
A Train Storage and Servicing Facility (TSSF) near the VIA Rail overpass on Greenbank Road
Three (3) new bridges over the VIA Rail line at Woodroffe Avenue, the Southwest Transitway and Fallowfield Road
A bus-to-rail transfer terminal and 250-spot park-and-ride at the Barrhaven Town Centre.

Barrhaven Light Rail Transit (Baseline Station to Barrhaven Town Centre) and Rail Grade-Separations Planning and Environmental Assessment Study - Study Area Map

Study Process

The environmental impacts of this transit project will be assessed according to the transit project assessment process (TPAP) as prescribed in Ontario Regulation 231/08, Transit Projects and Metrolinx Undertakings of the Environmental Assessment Act. As part of the transit project assessment process, an Environmental Project Report (EPR) is being prepared. All information produced during the study course will be available on the project website: Ottawa.ca/barrhavenlrt

The deadline for comments on the draft EPR is November 23, 2021. Comments on the EPR can be submitted to the project email Barrhavenlrt/tlr@ottawa.ca

If you would like to obtain copies of the EPR’s appendices, please forward your request to barrhavenlrt/tlr@ottawa.ca

The next step will be to finalize the EPR which will include a 30-day public review after posting the Notice of Completion.

Consultation

Members of the public and agencies and other interested persons are encouraged to participate in the transit project assessment process.

For further information, or for accessibility requirements, please do not hesitate to contact us.

Barrhavenlrt/tlr@ottawa.ca

Frank McKinney
Program Manager
Transportation Planning – Environmental Assessments
Planning, Infrastructure & Economic Development Department
City of Ottawa
110 Laurier Ave. West, 4th Floor, Ottawa, ON K1P 1J1
613-580-2424, ext. 28540

All personal information included in your request – such as name, address, telephone number and property location – is collected, under the authority of section 30 of the Environmental Assessment Act and is collected and maintained for the purpose of creating a record that is available to the general public. As this information is collected for the purpose of a public record, the protection of personal information provided in the Freedom of Information and Protection of Privacy Act (FIPPA) does not apply (s.37). Personal information you submit will become part of a public record that is available to the general public unless you request that your personal information remain confidential.

Notice first published October 23, 2021.

Second Public Consultation – Online September 9 to 23, 2020

Due to the public health guidelines for COVID-19, this public consultation will occur online for a period of two weeks allowing the stakeholders and the public to review the material and provide feedback.

Background

The City of Ottawa has initiated the Barrhaven Light Rail Transit (Baseline Station to Barrhaven Town Centre) and Rail Grade-Separations Planning and Environmental Assessment (EA) Study to develop a Recommended Plan to extend Light Rail Transit (LRT) from Baseline Station to Barrhaven Town Centre, as well as the grade-separations of Woodroffe Avenue, Southwest Transitway and Fallowfield Road where these corridors cross the VIA Rail Smiths Falls Subdivision line. The study area is approximately 10 km in length.

The City of Ottawa invites you to provide your feedback on the Barrhaven LRT (Baseline Station to Barrhaven Town Centre) and grade separations recommended plan.

Study Process

The EA study is being conducted in accordance with the Transit Project Assessment Process (TPAP) as prescribed under Ontario Regulation 231/08 of the Environmental Assessment Act. The EA process involved developing and evaluating alternatives which led to a Recommended Plan that considered all aspects of the surrounding environmental (social, natural, physical and economic) conditions.

This second public consultation will include the following:

A recorded presentation:

Transcript for Barrhaven Light Rail Transit — Preliminary Recommended Plan Overview video

Recommended Plan Overview Presentation Script
Open configuration options
Open configuration options
Welcome to this online consultation event for the Barrhaven Light Rail Transit and Rail Grade-Separations Environmental Assessment Study.

This video provides an overview of the Preliminary Recommended Plan to extend the City’s O-Train Line from Baseline Station to Barrhaven Town Centre.

Further information on this plan can be found in the additional videos, presentation boards and roll plan drawings accessible on this web site.

The Preliminary Recommended Plan incorporates:

10 kilometres of twin-track, fully segregated electric LRT, which includes 2.4 kilometres of elevated guideway west of Woodroffe Avenue between Baseline Station and the Nepean Sportsplex, and conversion of the existing 7.6 kilometre Southwest Transitway from bus to LRT
7 stations – including 3 new
A train storage and servicing facility near the Via Rail overpass on Greenbank Road
Three new bridges over the VIA Rail line at Woodroffe Avenue, the Southwest Transitway and Fallowfield Road, and
A bus-to-rail transfer terminal and 250-spot park-and-ride at the Barrhaven Town Centre
The study evaluated below-grade, at-grade and elevated alternatives – both within and to the west of the Woodroffe Avenue right-of-way between Knoxdale Station and the Nepean Sportsplex.

Below grade alternatives expose the City to more risk and liability related to geotechnical conditions and conflicts with underground utilities, and are more expensive and take longer to build.

An at-grade alternative does not meet the design standards and the operational and safety requirements established for the City’s O-Train network.

An elevated facility west of Woodroffe is the preferred alternative. Here’s why:

It avoids geotechnical risks and minimizes conflicts with all underground utilities. It is less technically complicated to build.

The elevated alternative does not create a barrier between communities. It provides opportunities to animate, program or landscape the space underneath.

West of Woodroffe Avenue is the shortest and straightest alignment and avoids impacts to Woodroffe Avenue both during and after construction. Any visual and noise impacts associated can be mitigated.

It eliminates curves that increase wheel noise and passenger discomfort and results in higher vehicle and track maintenance costs. This alignment optimizes station locations, reduces impact on traffic, and improves sight lines at intersections. A continuous multi-use pathway can be built along the full length of the corridor.

This option will impact 120 of the existing 205 residential units between Knoxdale and West Hunt Club.

The portions of these properties not impacted by LRT could be redeveloped to replace the units displaced by LRT construction.

Three new elevated stations will be built. The station platforms will be accessed by stairs, escalators and/or elevators from ground level. A plaza at the main station entrance will provide seating, landscaping, public art and bicycle parking.

Tallwood Station will be located at the southwest corner of the Woodroffe/Tallwood/ Meadowlands intersection.
Knoxdale Station would be built at the northwest corner of the Woodroffe/Knoxdale/Medhurst intersection. This station will provide access to surrounding communities such as Tanglewood and Manordale.
Nepean Sportsplex Station would be built on the west side of Woodroffe Avenue, across from the Nepean Sportsplex facility. It includes a pedestrian bridge over Woodroffe Avenue.
Four existing stations will become LRT stations.

Fallowfield Station will be elevated similar to Hurdman station, allowing pedestrian and vehicular access beneath to the VIA Rail station situated to the north.
Longfields Station will remain in its current location and serve the local community via walking and cycling connections.
Strandherd Station will remain in its current location but will be located below-grade to accommodate a new overpass at Berrigan Drive. The LRT platforms will be accessed via a pedestrian and cycling bridge which will be extended to the existing Park and Ride and retail plaza to the west of the station.
As the final station on the line, Barrhaven Centre Station will serve as a multi-modal bus and rail passenger transfer terminal linking the LRT with both the future Southwest and Chapman Mills bus Transitways. The station will include a new 250-spot Park-and-Ride Lot.
A Train Storage and Servicing Facility for storing and performing light service on 8 trains will be built adjacent to the line near the existing Greenbank Road VIA Rail crossing.

Three new Rail Grade-Separations will be built where Woodroffe Avenue, the Southwest Transitway and Fallowfield Road cross the existing VIA Rail tracks to improve the safety of users by segregating the roadway, pedestrian and cycling facilities from the tracks below.

The Woodroffe Avenue and Southwest Transitway overpasses will be built as separate structures.
The Woodroffe Avenue overpass will have two traffic lanes in each direction and a multi-use pathway on the east side.
The Transitway overpass will be designed to accommodate both BRT, and LRT.
The Fallowfield Road overpass will cross over the VIA Rail and City LRT tracks approximately 40m north of the current crossing. It will have two traffic lanes in each direction and a multi-use pathway on the south side.
The City’s current Transportation Master Plan has LRT to Barrhaven built after 2031. However, the future master plan updates may change this timeline. Construction also depends on funding from senior levels of government.

Depending on funding, the project may be built in two phases. The first phase would extend LRT from Baseline Station to Fallowfield Station. The three VIA Rail grade-separations would be included in this phase. The second phase would extend the LRT from Fallowfield Station to Barrhaven Centre station and would include construction of the Train Storage and Service Facility.

The recommended plan also includes interim transit priority measures at several locations in Woodroffe corridor to reduce bus delays.

The City could elect to proceed with the three VIA Rail grade-separated crossings, independent of the Barrhaven LRT project.

For more information and to provide feedback by Wednesday, September 23, 2020, please visit (www.ottawa.ca/barrhavenlrt).

Transcript for Barrhaven Light Rail Transit — Baseline Station to Nepean Sportsplex video

Baseline Station to Nepean Sportsplex Presentation Script
Open configuration options
Open configuration options
Welcome to this on-line consultation event for the Barrhaven Light Rail Transit and Rail Grade-Separations Environmental Assessment Study.

This video provides an overview of how and why the preferred alternative for the Baseline Station to Nepean Sportsplex portion of the study corridor was chosen.

Let’s begin…

Planning and design issues that needed to be considered when developing and evaluating design alternatives included reviewing the 1997 EA plan in light of the change to LRT along with new information on background geotechnical conditions, addressing all modes of transportation during and after construction, community and underground infrastructure impacts, and capital and operating costs.

This analysis led to three key design considerations. Grade-separation; Geotechnical conditions of concern; and the limited right-of-way through a “Pinch Point” between Knoxdale and West Hunt Club Roads.

As an extension of the City’s O-Train this project must use the same design standards as the rest of the network. This means the LRT system needs to be grade-separated at all transportation corridors.

Early in the study it was determined that the close spacing between the streets and the CN Rail line crossing the corridor, combined with the design grade for the LRT doesn’t allow combining underpasses and overpasses along the line. Therefore, the preferred alternative (either below-grade or elevated) must be used for the entire 2.4 km length from Baseline Station to the Nepean Sportsplex.

We know from other City projects that beneath a thin layer of topsoil and fill are layers of sensitive marine clay and permeable materials including sand, silts and glacial till of varying thicknesses that extend down to the underlying bedrock up to 25 metres below the ground surface. The existing water table is very high throughout the study area, in some places extending up into the clay layer.

Construction of any below-grade LRT facility would extend into the permeable sands lying beneath the sensitive marine clay layer. The bottom would be several metres below the existing groundwater, so the facility needs to be designed to prevent any lowering of the surrounding groundwater level outside of the trench.

If not, this could result in the settlement of homes or buildings up to 250 meters either side of the LRT alignment. A GIS-based analysis demonstrates that over 640 homes and over 40 commercial, institutional or business buildings could be impacted.

A focused evaluation through the “Pinch Point” would determine the preferred alternative for the Baseline Station to Nepean Sportsplex section.

Two alternatives were screened out early in the study:

The first was locating the LRT in a bored tunnel. Both shallow and deep tunnels were considered and screened out due to geotechnical and cost considerations.
The second was to locate the LRT on the east side of Woodroffe Avenue. It was screened out as not being compatible with the corridor to the north and south; limits space for active transportation; conflicts with existing utility infrastructure; and significantly disrupts transit and traffic operations during construction.
On this basis six alternatives were identified – four within the Woodroffe Avenue right-of-way; and two to the west of the right-of-way.

Alternatives 1 and 2 are below-grade within the Woodroffe Avenue right-of-way.

Alternative 1 is a cut-and-cover tunnel running under the southbound lanes of Woodroffe Avenue. Being fully buried, all of the right-of-way is available to renew Woodroffe Avenue as a ‘Complete Street. Alternative 2 is in an open-trench on the west side of the Woodroffe Avenue. The space needed for the trench permanently reduces roadway capacity and is insufficient to renew Woodroffe Avenue as a ‘Complete Street’.
Both alternatives are expensive and complex to build and introduce geotechnical condition related risks. The space required for their construction – which will likely take three years - will significantly disrupt roadway capacity for all modes leaving no space for separate cycling facilities.
Alternatives 3 and 4 are elevated within the Woodroffe Avenue right-of-way. Both provide the opportunity to shift the alignment south of West Hunt Club so the station is on the same side as the Nepean Sportsplex Alternative 3 locates the elevated alignment within the median of Woodroffe Avenue while Alternative 4 locates it on the west side of the Woodroffe Avenue right-of-way.
Both alternatives are less expensive and complicated to build, and don’t entail the geotechnical risks that below-grade alternatives do. Less space is required for their construction – which will likely take two years. Reduction in roadway capacity for all modes is less than for Alternatives 1 and 2. Separate cycling facilities can be accommodated for the full duration of construction and utility relocations are avoided.
Alternatives 5 and 6 maintain a continuous, straight track geometry throughout the entire corridor, consistent with the approved plan to the north and south. Situated west of the Woodroffe Avenue right-of-way, they directly impact some existing residential properties. Alternative 5 is a below-grade trench while Alternative 6 is an elevated guideway.
Both alternatives require property and displace existing residences, however they virtually eliminating all disruption to mobility during their construction. The existing sidewalks, bicycle lanes, bus-only transit lanes and travel lanes on Woodroffe Avenue are maintained .
The alternative evaluation process considered a broad list of criteria responding to all aspects of the environmental sustainability, including: Transportation System, NCC Greenbelt, Ecological and Physical, Land Use and Community and Economic. A total of 14 categories and 37 indicators were used.

In general, the below-grade alternatives expose the City to more risk & liability associated with the geotechnical conditions and are more expensive and take longer to construct. While they have less noise and visual impact, they may be perceived as a barrier that reduces connectivity between the community and Woodroffe Avenue.

The elevated alternatives are cost-effective with straight track geometry but may introduce concerns about noise and privacy. They avoid the risks associated with the geotechnical conditions and impacts to underground services and utilities. They also have potential for using the space below them for mobility or other uses.

This chart summarizes the evaluation results.

Alternative 6 – Elevated West of Woodroffe was selected as the preferred alternative.

Let’s examine why…

Any lowering of the surrounding groundwater table by building a below-grade facility would impact the clay layer above, and potentially result in settlement of surrounding structures and underground utilities. To prevent permanently lowering the groundwater, water-tight construction methods are required which are both complex and expensive. Maintaining the integrity of a continuous 2.4 kilometre long water-tight structure over the life of the facility would be a significant challenge. Any leaks would be very difficult and costly to repair. Even small leaks in the permanent structure can result in groundwater lowering that may take place over many years, resulting in damage claims years after construction.

To understand why it’s both complex and expensive let’s see how you build a below-grade trench LRT.

Interlocking piles will be used to create a parallel set of water-tight walls along the entire 2.4 kilometre length of the trench. A steel liner is driven through the ground until it is at least of 3 metres into the bedrock. Then reinforced concrete is poured into the liner before it is removed. This operation is completed for the entire length of one wall…

…and then the other…

…followed by excavating the area in between the walls.

A permanent concrete base slab is then anchored to both walls forming a watertight unit to support the LRT rail tracks. Precast panels will cover the tunnel walls and the LRT tracks will then be installed. Construction would likely take a minimum of 3 years.

In contrast, building an elevated guideway is more straight forward.

The guideway will be supported on structural piers spaced every 30 to 40 metres along the 2.4 kilometre corridor. The pier foundations are built by driving a single steel liner until it reaches bedrock.

A socket is drilled into bedrock, then a reinforcing steel cage is lowered into the hole and filled with concrete.

The reinforced concrete pier is extended above ground and topped with a pier-cap. Precast concrete girders that span between the piers are then erected using cranes.

A reinforced concrete deck is installed on the girders to support the LRT rail tracks. It would likely take two years to construct this alternative.

The continuous water-tight walls of a below-grade trench effectively cut-off several utilities that cross the LRT corridor, including large storm and sanitary sewers. Each will require a unique solution. Some of the smaller ones may be punched through the trench walls passing through a water-tight sleeve. However, some will require significant and costly relocations to connect elsewhere.

The elevated alternative avoids conflicts with the underground utilities and thus does not require complicated solutions to maintain existing or provide new crossings.

To summarize, the elevated alternative avoids geotechnical risks and all underground utilities crossing the corridor. It is less technically complicated to build. Completely covering a below-grade trench to avoid creating a community barrier is not a viable option as it has additional costs such as the need for ventilation systems and emergency exits. Any potential visual and noise impacts can be mitigated using best practices.

The elevated alternative provides opportunities to animate, program or landscape the space underneath including a new multi-use pathway.

West of Woodroffe Avenue is the shortest and straightest alignment that avoids impacts to Woodroffe Avenue both during and after construction.

It eliminates curves that increase wheel noise and passenger discomfort that also result in higher vehicle and track maintenance costs. It reduces impact on traffic, improves sight lines at intersections and provides the opportunity to build a continuous multi-use pathway the full length of the corridor.

This option will impact 120 of the existing 205 residential units between Knoxdale and West Hunt Club on three property parcels.

The portions of these properties not impacted by LRT could be redeveloped to replace the units displaced by LRT construction.

Three new elevated stations will be built. The station platforms will be accessed by stairs, escalators and/or elevators from ground level. A plaza at the station entrance will provide seating, landscaping, public art and bicycle parking.

Tallwood Station will be built in the southwest quadrant of the Woodroffe/Tallwood/Meadowlands intersection, adjacent to the City of Ottawa Archives building providing access to the surrounding communities. A parallel multi-use pathway along the west side of Woodroffe Avenue provides pedestrian and cycling connections to the station.

Knoxdale Station will be built at the northwest corner of the Woodroffe/Knoxdale/Medhurst intersection. This station will provide access to surrounding communities such as Tanglewood and Manordale.

Nepean Sportsplex Station will be built on the west side of Woodroffe Avenue across from the Nepean Sportsplex facility. A pedestrian bridge will be built over Woodroffe Avenue provides access to and from the east side. The new parallel multi-use pathway on the west side of Woodroffe Avenue will cross to the east side to connect with the existing pathway that extends south to Barrhaven.

A preliminary impact assessment was completed to identify where additional mitigation may be required, and to make recommendations for the EA Report. Some of the findings and recommendations include:

A noise and vibration study indicated that no mitigation is required along the elevated guideway.
Redevelopment concepts can protect privacy by optimizing design and orienting residences appropriately
Lessons learned from the current Confederation Line will be employed to manage snow on the elevated facility
A corridor landscaping and space programming opportunities strategy will be developed
Further information can be found in the additional videos, presentation boards and roll plan drawings accessible on this web site.

For more information and to provide feedback by Wednesday September 23rd 2020, please visit (www.ottawa.ca/barrhavenlrt).

Transcript for Barrhaven Light Rail Transit — Nepean Sportsplex to Barrhaven Town Centre video

Nepean Sportsplex to Barrhaven Centre Presentation Script
Open configuration options
Open configuration options
Welcome to this on-line consultation event for the Barrhaven Light Rail Transit and Rail Grade-Separations Environmental Assessment Study.

This video provides an overview of the Preliminary Recommended Plan to convert the existing Southwest Transitway to LRT between the Nepean Sportsplex and Barrhaven Centre Station.

Let’s begin…

South of the Nepean Sportsplex the existing 7.6 kilometre Transitway will be converted from a two-lane roadway to a twin-track electrically-powered fully segregated light rail line, including modifying Fallowfield, Longfields and Strandherd Stations. The line will end at a new Barrhaven Centre station that includes a 250-spot park-and-ride lot. A train storage and servicing facility will be built on City-owned lands near the VIA Rail overpass on Greenbank Road and new bridges provided where Woodroffe Avenue, the Southwest Transitway and Fallowfield Road currently cross the existing VIA Rail tracks at-grade.

Immediately south of Nepean Sportsplex station the elevated light rail line will transition back down to grade and follow the existing Southwest Transitway alignment west of Woodroffe Avenue as it passes through the NCC Greenbelt. Safety fencing will be provided on either side of the LRT corridor.

During construction buses will operate within mixed traffic on Woodroffe Avenue, with northbound and southbound bus queue-jumps at key locations to minimize delays.

Minimizing impact on NCC Greenbelt lands was an important study consideration. Reducing temporary and permanent NCC land requirements was addressed by designing the LRT and rail grade-separations to minimize their overall footprint. Existing property accesses and multi-use pathway networks were maintained or enhanced. Separated bridge structures are used to allow light penetration and new views across the Greenbelt. Nearby Wetlands were considered, and two new eco-crossings are included to permit the passage of fish, small mammals, larger terrestrial wildlife and birds.

Fallowfield will be an elevated station allowing pedestrian and vehicular access to the VIA Rail station to the north. Passengers will access a central platform by elevators or stairs from ground level similar to Hurdman Station, and a new bus loop will provide transfers between buses and the LRT, and the VIA Rail station.

A new signalized intersection on Woodroffe Avenue and new pathway connections will be built. The existing Memorial Garden will remain in its current location. This station has been designed with integration with a future VIA Rail station in mind.

South of Fallowfield station new bridges over the LRT line will be built at Berrigan Drive, Marketplace Avenue and Chapman Mills Drive. The existing trench near Strandherd Drive will be extended to both the north and south and the line will end at a new multi-modal Light Rail and Bus Rapid Transit Transfer Terminal Station and Park-and-Ride at Barrhaven Town Centre.

Longfields Station will remain in its current location and serve the local community via walking and cycling connections. The station will retain the same general layout, with the lower level expanded to accommodate fare gates and ticket vending machines. The existing below-grade pathway crossing remains in place.

Strandherd Station will remain in its current location but will be below-grade to accommodate the new Berrigan Drive bridge. A centre-island platform will be accessed via a pedestrian and cycling bridge which extends between the existing Park and Ride and retail plaza to the west of the station. The existing Park and Ride will remain with minor changes to accommodate revised circulation and pedestrian and cycling links.

Barrhaven Centre Station will serve as a bus and rail passenger transfer terminal linking the LRT with the future Southwest and Chapman Mills bus Transitways. Passengers will access a below-grade platform by stairs, escalators and/or elevators at ground level with links to an at-grade bus loop to provide transfers between buses and the LRT. The station will include a bus lay-up area and facilities for operators. LRT tail tracks will extend 200 metres south of the station platform within a trench crossing under Chapman Mills Drive.

A new 250-spot surface Park-and-Ride Lot west of the proposed bus loop will be built, configured to be compatible with the existing Barrhaven Centre Transitway station. In the future this facility could also be incorporated into the Civic Complex as a permanent shared-use underground facility.

The City’s Stage 1 and 2 LRT projects built Maintenance and Storage Facilities at Belfast Road and Moodie Drive respectively.

Due to the long distance between Barrhaven Centre and either of these two sites, this study determined that an additional storage facility is required to enable more efficient LRT operations by:

Reducing non-revenue train movements;
Allowing a longer time at night to do daily inspection and maintenance activities along the line; and
Providing the ability to scale service to match demand
The facility needs to accommodate 16 light rail vehicles with six covered storage tracks, two tracks for inspection, servicing and minor component repairs, and an administration building for LRT staff including parking. Located directly adjacent to the LRT corridor near the end of the line is preferred.

Six alternative sites were considered. These were:

Baseline Station
Woodroffe Open Space
Slack Road
Fallowfield
Greenbank
Barrhaven Town Centre
The evaluation considered a broad list of criteria responding to all aspects of the environmental sustainability, including: Transportation System, NCC Greenbelt, Ecological and Physical, Land Use and Community and Economic.

The Greenbank site was chosen as the preferred alternative. It is large enough to accommodate all requirements, is situated on City-owned land, and is close to the end of the line. It is bounded by the VIA Rail line to the north, Greenbank Road to the west, and the Southwest transitway corridor to the east. Access will be from Highbury Park Drive.

Walls and/or landscaped berms will be built as needed to reduce visual and noise impacts. All vehicle servicing will occur inside closed buildings, and the external lighting will be designed to ensure no spill-over effects. The site will be protected by security fencing installed around its periphery. Further noise analysis will be required during implementation to determine if mitigation is required.

Three new Rail Grade-Separations will be built where Woodroffe Avenue, the Southwest Transitway and Fallowfield Road cross the existing VIA Rail tracks.

The 2017 Barrhaven and Merivale Road Rail Crossing Grade-Separation Feasibility Study recommended building bridges to carry the transitway and roads over the rail line as the preferred option. These were deemed the most cost-effective solution that minimized geotechnical risk; impacts on the transportation network and NCC Greenbelt land; and maintained accesses to adjacent properties and developments.

This study reconfirmed the preferred option and carried out design refinements based on feedback received during both the Feasibility study and this EA.

The Woodroffe Avenue and Southwest Transitway overpasses will be separate bridge structures. The Woodroffe Avenue bridge will have two traffic lanes in each direction and will relocate the existing NCC multi-use pathway on the east side. .

The local soils cannot support heavy embankment loads so each overpass will be a long multi-span structure with lower approach embankments that reduce project footprint and allow spaces for recreational pathways and ecological connectivity underneath.

The Transitway overpass will be designed to accommodate both bus and light rail transit modes.

The open median on the Woodroffe structure will allow light to penetrate below to the multi-use pathway. In this view it is shown on the east side. The LRT overpass is to the west.

As shown in this view looking southeast, the NCC multi-use pathway provides a continuous connection and considers the future NCC Black Rapid’s Creek recreational path.

A new signalized intersection provides access to the integrated Fallowfield Station as can be seen in this view looking north-west, with the relocated Royale Equestrian Centre entrance in the foreground.

Both the Woodroffe Avenue and Southwest Transitway bridges will be built at the same time. A temporary detour will be built west of the future structures with a new signalized at-grade crossing of the VIA Rail line accommodating transitway buses, general traffic and the NCC multi-use pathway. Buses will operate in exclusive transit lanes through this crossing and transition into general traffic north of the crossing.

Northbound and southbound bus queue-jumps will be built at the Slack Road intersection, and between Vaan Drive and the Nepean Sportsplex where they will tie into the existing dedicated bus-only lanes to the north to minimize transit delays.

The Fallowfield Road overpass will cross over the VIA Rail and City LRT tracks approximately 40m north of the current crossing. This creates greater separation from the existing neighborhood reducing noise, vibration and air quality impacts and avoids building a costly temporary detour. It will have two traffic lanes in each direction and include a relocated existing multi-use pathway on the south side. The existing intersections providing access to Fallowfield Station and the adjacent shopping plazas on the south side will be reconfigured.

This view looking north-east shows the long multi-span bridge with lower approach embankments that reduce the project footprint and associated impact on NCC lands. The abandoned roadbed will be rehabilitated and provide space for landscaping, stormwater management and for potential community use. The existing multi-use pathway will be incorporated on the south side, and a new pathway connection linking to Fallowfield Station from the south will run under the overpass.

While the Transitway is being converted through Barrhaven, bus detours will replace the services normally using the Transitway. The exact routing will be determined during project implementation. One alternative includes using the Chapman Mills bus Transitway connecting to Nepean Woods Station. From there passengers could access routes travelling north on Woodroffe Avenue to Fallowfield Station, or east along Strandherd Drive and across the Vimy Bridge to the Trillium Line at Limebank Road.

Further information can be found in the additional videos, presentation boards and roll plan drawings accessible on this web site.

For more information and to provide feedback by Wednesday September 23rd 2020, please visit (www.ottawa.ca/barrhavenlrt).

The evaluation of alternative designs for the future LRT facility
Rail grade-separations (overpass structures) at Woodroffe Ave, Southwest Transitway and Fallowfield Road where these corridors cross the VIA Rail line
A new park and ride facility
A Train Storage and Servicing Facility (TSSF) including evaluation of alternative sites considered
The functional design of the recommended plan
Preliminary impact assessment
Implementation and staging plans
Next steps.

Display Boards and Plans

Display Boards 1 to 17 [ PDF 12.865 MB ]

Display Boards 18 to 33 [ PDF 12.306 MB ]

Baseline Station to Nepean Sportsplex Preliminary Recommended Plan [ PDF 6.868 MB ]

Nepean Sportsplex to Fallowfield Station Preliminary Recommended Plan [ PDF 11.999 MB ]

Fallowfield to Barrhaven Town Centre Preliminary Recommended Plan [ PDF 9.491 MB ]

Your feedback is an important component of the study. Primary means for providing feedback include submission of the Comment-Questionnaire form or sending email to the City Project Manager.

Any comments received will be collected under the Environmental Assessment Act and, with the exception of personal information, will become part of the public record. Accessibility is an important consideration for the City of Ottawa. If you require alternative means to provide feedback, please contact the City Project Manager as noted below. Members of the public are encouraged to submit comments by September 23, 2020.

This notice first published on September 5, 2020.

For further information or to provide comments, please contact:

Jabbar Siddique, P.Eng.
Senior Project Manager
Transportation Planning
Transportation Services Department, City of Ottawa
613-580-2424 ext. 13914
Email: Jabbar.Siddique@ottawa.ca

Notice of Open House #1 - October 30, 2019

Date and time

Wed, Oct 30 2019, 6:00pm to 8:30pm

Location

Nepean Sportsplex

1701 Woodroffe Avenue

Ottawa ON K2G 1W2

Open House Display Boards

Boards 1 to 5 [ PDF 6.08MB ]

Boards 6 to 10 [ PDF 7.03MB ]

Boards 11 to 15 [ PDF 5.84MB ]

Boards 16 to 20 [ PDF 7.22MB ]

Boards 21 to 25 [ PDF 6.20MB ]

Boards 26 to 30 [ PDF 5.98MB ]

Boards 31 to 35 [ PDF 6.67MB ]

Boards 36 to 40 [ PDF 6.11MB ]

Roll Plans

Roll Plan Section 1 [ PDF 11.2MB ]

Roll Plan Section 2 [ PDF 2.24MB ]

Roll Plan Section 3 [ PDF 1.95MB ]

Presentation at 7 pm.

The City of Ottawa has initiated the Barrhaven Light Rail Transit (Baseline Station to Barrhaven Town Centre) and Rail Grade-Separations Planning and Environmental Assessment (EA) Study to develop a Recommended Plan for the extension of a Light Rail Transit (LRT) facility from Baseline Station to Barrhaven Town Centre, as well as the grade-separations of Woodroffe Avenue, Southwest Transitway and Fallowfield Road where these corridors cross the VIA Rail line.

The EA study is being conducted in accordance with the Transit Project Assessment Process (TPAP) Ontario Regulation 231/08 in accordance with the Ontario Environmental Assessment Act. The EA process will involve developing and evaluating alternatives, leading to a Recommended Plan in consideration of the surrounding environmental (social, natural, physical and economic) conditions.

There will be ongoing public consultation activities during the course of the study. This first open house will provide:

An overview of the study objectives, need and opportunities, existing conditions and study progress to date
Design options for the LRT alignment from Baseline Station to the Nepean Sportsplex,
A preliminary plan to convert the Southwest Transitway to LRT from the Nepean Sportsplex to Barrhaven Town Centre including rail grade-separations of Woodroffe Avenue, Southwest Transitway and Fallowfield Road, and
Next steps

Your participation in the open house is an important component of the study where you can discuss the project with the study team and provide feedback. Interested persons can provide comments throughout the EA Study. Any comments received will be collected under the Environmental Assessment Act and, with the exception of personal information, will become part of the public record.

Accessibility is an important consideration for the City of Ottawa. If you require special accommodation, please call or email the City of Ottawa Project Manager before the event.

Contact

Jabbar Siddique, P.Eng., Senior Project Manager, Transportation Services Department

Richmond Ballroom - Entrance #4

Jabbar.Siddique@ottawa.ca

Not specified613-580-2424 ext. 13914

Barrhaven Light Rail Transit (Baseline Station to Barrhaven Town Centre) and Ra…

Overview

The first Open House on this project is scheduled on October 30, 2019.

In June 2017, the City of Ottawa Transportation Committee and City Council received the Barrhaven and Merivale Road Rail Grade Separation Study which examined the feasibility of grade-separating of four roadways and the Southwest Transitway where they currently have at-grade crossings with the VIA Rail line. The study was undertaken following a recommendation from the Transportation Safety Board in its 2015 report on the VIA Rail and OC Transpo train and bus collision that occurred in 2013.

On 27 June 2018, City Council approved a motion directing staff to undertake the Environmental Assessment Study for conversion of Southwest Bus Rapid Transit (BRT) corridor to Light Rail Transit (LRT) facility to serve Barrhaven such that the interim results can be part of the upcoming Transportation Master Plan (TMP) review and assessed for consideration with respect to the City's next phase of Transit investments.

Subsequently, the City of Ottawa has initiated the Barrhaven Light Rail Transit (Baseline Station to Barrhaven Town Centre) and Rail Grade-Separations Planning and Environmental Assessment (EA) Study. The EA study will develop a Recommended Plan for extension of Light Rail Transit (LRT) facility from Baseline Station to Barrhaven Town Centre in the Market Place area, as well as the grade-separations of Woodroffe Avenue, Southwest Transitway and Fallowfield Road where these corridors cross the VIA Rail line. The project is approximately 10 km in length.

The City’s current Transportation Master Plan (TMP 2013) identifies a number of modifications to road and transit infrastructure priorities to accommodate future travel demand on the City’s transportation infrastructure. It includes extension of LRT facility to Barrhaven area as part of the Ultimate Rapid Transit and Transit Priority Network.

The study area for this EA is illustrated in the key map.

The EA study will focus on the corridor that has previously been approved through the 1997 Southwest Transitway EA study (Baseline Station to Strandherd Drive) and the Southwest Transitway Extension EA study (Strandherd Drive to Cambrian Road) completed for a BRT facility. It will also include examining options for implementation staging, rapid transit supportive facilities including maintenance and storage facilities, Park and Ride and pedestrian and cycling facilities along the corridor while respecting the Long Range Affordable Transit Plan.

Completion of the LRT EA study will bring the Barrhaven area to the same level as other areas outside the Greenbelt with regards to LRT planning.

Key Opportunities

Completion of the EA Study will:

Set the project up for the next phase (design and construction)
Determine the project cost that will help in City’s Long Range Financial forecasts and securing funds for its implementation
Be a step forward towards extension of LRT to Barrhaven area as well as implementation of TMP’s Ultimate LRT network
Establish and protect the right-of-way requirements for the LRT facility including if required an MSF and park and ride facility
Allow the City to acquire land for the project as opportunities become available

Study Process

The study is being conducted in accordance with the Transit Project Assessment Process (TPAP) Ontario Regulation 231/08 made under the Ontario Environmental Assessment Act. The objective of the EA will be to recommend a cost effective, context-sensitive, functional design that accommodates all users; is compatible with surrounding land uses; and minimizes impacts on the surrounding environmental (social, natural/physical, and economic) conditions.

Consultation

The EA process requires a comprehensive consultation program involving many stakeholders, including Indigenous people, regulatory agencies, conservation authorities, local community associations, property and business owners, special advisory and interest groups and members of the public. Hence, there will be ongoing public consultation activities during the course of the Study. As part of the Study process, an Environmental Project Report (EPR) will be prepared to document the planning and design process, and to present the Recommended Plan. The EPR will be available for review by the public and review agencies for a period of 30 calendar days.

Study Timeline

The study is expected to be completed in Q4 of 2020.

For further information on this project, please contact:

Jabbar Siddique, P. Eng.
Senior Project Manager
Transportation Planning
Transportation Services Department
City of Ottawa
613-580-2424 ext. 13914
Email: jabbar.siddique@ottawa.ca
